Aelight 80W Solar Street Light FP Series

Description

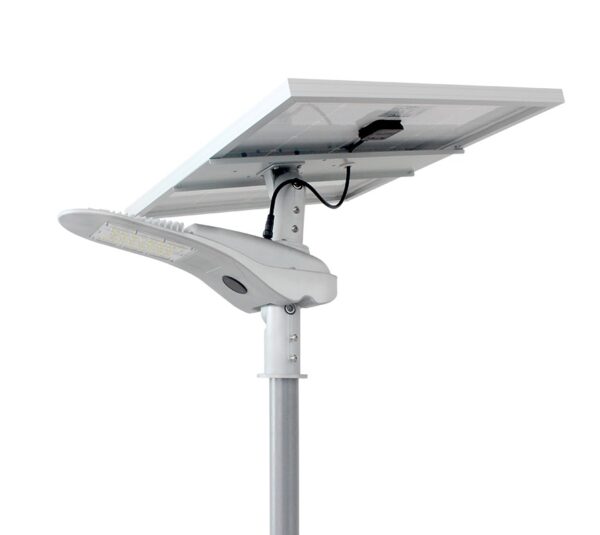

80w Portable Solar Light Details:

Built for a range of applications the FP-06A, 80W series is the world’s most advanced LED solar lighting system. This clever design and attractive, robust construction incorporates the latest solar power technology, providing many years of outstanding performance and reliability. Other solar lights house lead-acid battery packs underground or on the pole which are heavy and cumbersome to handle in both installation and replacement, are also vulnerable to water intrusion and theft. The FP-06A 80W uses an innovative patented “All-In-One” system that integrates an efficient solar panel, compact Lithium-ion (LiFeP04) battery and a smart power management system in a compact easy to install a light fixture. The FP-06A 80W Solar Light can also be installed on a horizontal pole and with AC power input if needed, call for details.

The All-In-One design eliminates the need for external wiring to remote battery packs and does not require an electrician to set up. All wiring is interconnected to the high output LED luminaire directly to the power management system without requiring tools. The FP-06A 80W is designed to withstand the harshest and most extreme environments from blistering heat to driving rain, hail and sub-zero temperatures.

80w Portable solar light The uniquely integrated design (FP-06A) incorporates the LED light engine, adjustable photovoltaic panel, and long lifespan NiMH battery into one lighting system, thereby significantly simplifying installation and reducing cost – no trenching, no cabling or on-site assembly required. An ideal plug and play system for off-grid applications.

80W Portable Solar Street Light Features

• Auto ON/OFF, working 12hrs per night, 3-5 back up rainy days
• 2100-8000 lumens @ initial
• Uses Bridgelux 5050 LED chip or Cree 3030 LED chip
• Battery – Lithium-iron LiFePO4 (lithium-iron ferrous phosphate)
• 307.2WH / DC12.8V, 24AH, 8 year life
• Color Temp 5000K
• Total Luminous Flux – 8000lm
• CRI – ≧75
• High LED Luminous efficiency up to 190-210lm/w
• Two light distributions available: 150 X 70 for road lighting, 150 X 80 for area lighting. Lighting area expanded by 40%, lighting uniformity increase to 200%
• -20˚C + 75˚C operating temperature
• Post Top and side entry mounting
• Adjustable Angle – 360˚ on the Horizontal 180˚ on the Vertical
• 4 – 10 meters mounting height, fits standard 60mm pole
• Weight – 17kg (FP-06A)
• Lifetime – ≧50,000hrs

Product Dimension: 550 X 220 X 220mm (L, W, H)

Performance

FP series offers a smart lighting management system with different lighting programs available:

• MODE L – Light Control – 100% – 1hr, 70% – 3hrs, 20% – till dawn
• MODE T – Time Control – 100% – 2 hrs, 70% – 2hrs, 50% – 2hrs
• MODE M – Microwave Control – 100% if people come close, 30% far away
• MODE U – Time + Microwave Control – 100% – 2hrs, 70% – 2hrs, 50% – 2hrs, sensor working 50%, if people come close, 20% far away
