OptiManufacturing T60 Series Cable Tensiometer

Description

Used extensively, it is considered the standard of the industry in many countries,and has proven it’s durably under long and continual service.Each instrument is suitable for use over awide range of tension measurements and different cable sizes.

Firm positive 3-point cable grip prevents dislodgement when instrument hanging free on control cable.The T60 requires no alternate riser for the various size cables.There are no losable parts in the T60.The instrument is always ready for instant use.An easy to operate,accurate,built-in gage eliminatesguess work as to size of cable to be tested. Simple, comfortable lever grip permits one hand operationwithout operator fatigue. In severe cold， service mittens or gloves may be worm without any lossefficiency of operation.

A simple lock holds dial pointer at exact reading on cables in areas where instrument cannot be seen.A touch unlocks the pointer preparatory for the next reading. Large, clear numerals make readingseasy and accurate. Bezel is easily turned to the correct zero setting for the proper cable size,determined by the gage in the handle head. The T60 is a durable precision instrument and is notdamaged by use on cable tensions beyond its range.

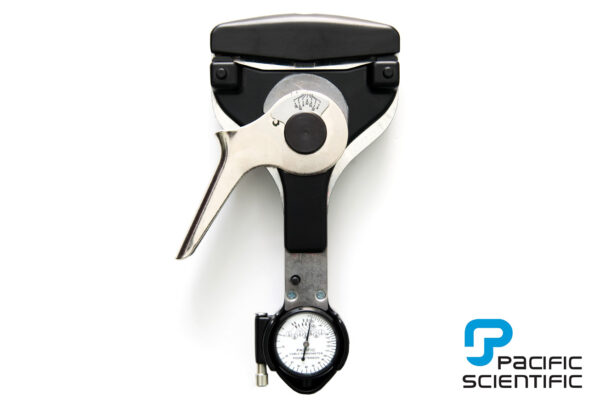

The cable Tensiometer is a hand-held instrument. A jaw is located at the top of instrument. Actualcontact on the cable is made by the riser block and the two sectors located in the jaw. A sliding yokeslides up the frame of the instrument to provide a measuring force. A dial indicator is located at thebottom of the instrument to give the actual tension indication. An actuating handle is pivoted at thecenter of the instrument and is motivated by a trigger spring within the body of the Tensiometer. Apointer lock button is situated just above the dial indicator and a handle latch is located on the left sideof the frame to engage the detent notch of the actuating handle.(See figure 1)

Model		Range in Lbs	Cable Sizes
T60-1001-C8-1A		10 – 200| 30 – 200|80 – 200	1/16, 3/32, 1/8 |5/32, 3/16 |7/32, 1/4
T60-1001-C9-1A		150 – 450	1/8, 5/32, 3/16, 7/32, 1/4
T60-1002-C8-00		10 – 200|30 – 200|80 – 200	3, 5, 10 (CWT)| 15, 25 (CWT)| 35, 45 (CWT)
T60-1002-C9-00		150 – 450	10, 15, 25, 35, 45 (CWT)
