Signal Craft Serial Bus Controller SC4415

Description

Scout is the highest performing, best value serial controller on the market. Unlike any other serial bus implementations, Scout products were designed specifically for high-speed, high-performance control applications. Architected around an FPGA, the SC4415 ensures all timing and control functions are deterministic. The product is targeted at high-volume production applications and test benches requiring reliable operation over millions of test sequences.

The Scout SC4415 represents the next generation in the Scout product line. It incorporates enhanced features as well as support for SPI, I2C, MIPI-RFFE, and the MIPI-I3C protocols.

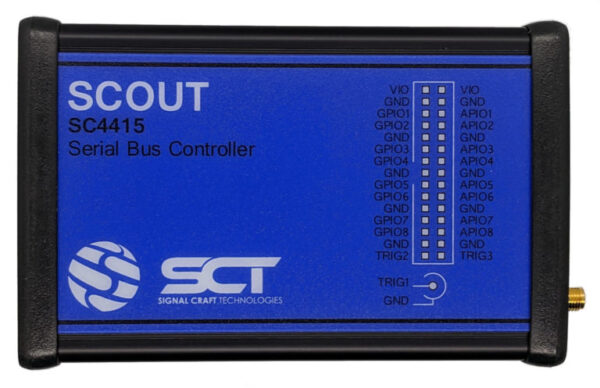

The device under test (DUT) interface incorporates serial bus, GPIO, and triggering functions on a standard dual row header. This format provides flexibility and more interconnect options, and also helps minimize noise coupling. The interface voltage (V_IO) is software selectable. For non-standard interface voltages, Scout can be configured to accept an external reference source. Several triggered buffer modes provide scripting capability for high-speed test and verification applications. Triggering modes include internal via software command and three external via GPIO or the trigger input.

Scout instantiates itself as a standard COM port via USB. The unit supports manual operation using a terminal emulator or fully automated control in ATE environments via any programming language.

Key Features

• USB-to-Serial Bus Controller Provides Deterministic Serial Communications
• Supports MIPI-I3C (w/ Legary I2C), MIPI-RFFE(v2.1), and SPI
• Software-Selectable Clock Rates (mode dependent), Supporting 50 kHz to 52 MHz in 1 kHz Steps
• Several Triggering Modes
• 8 General Purpose I/O (GPIO)
• Designed for Manufacturing Environments
• Field Upgradeable
• Wide Operating Temperature Range (0 °C to 70 °C)
